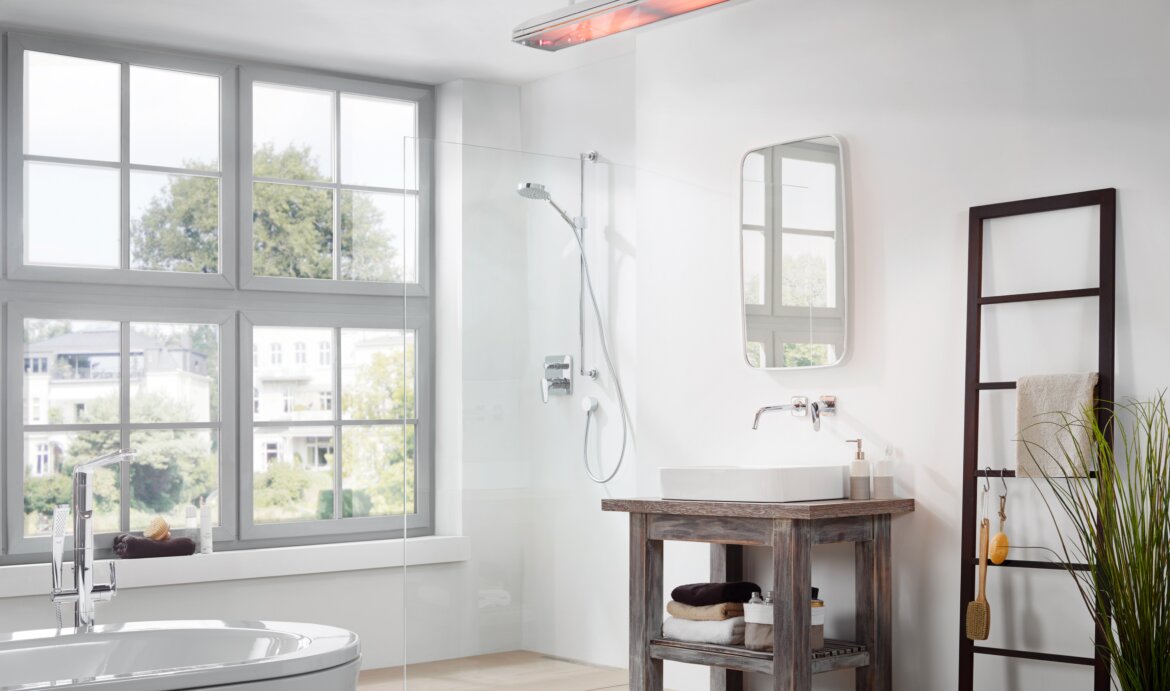

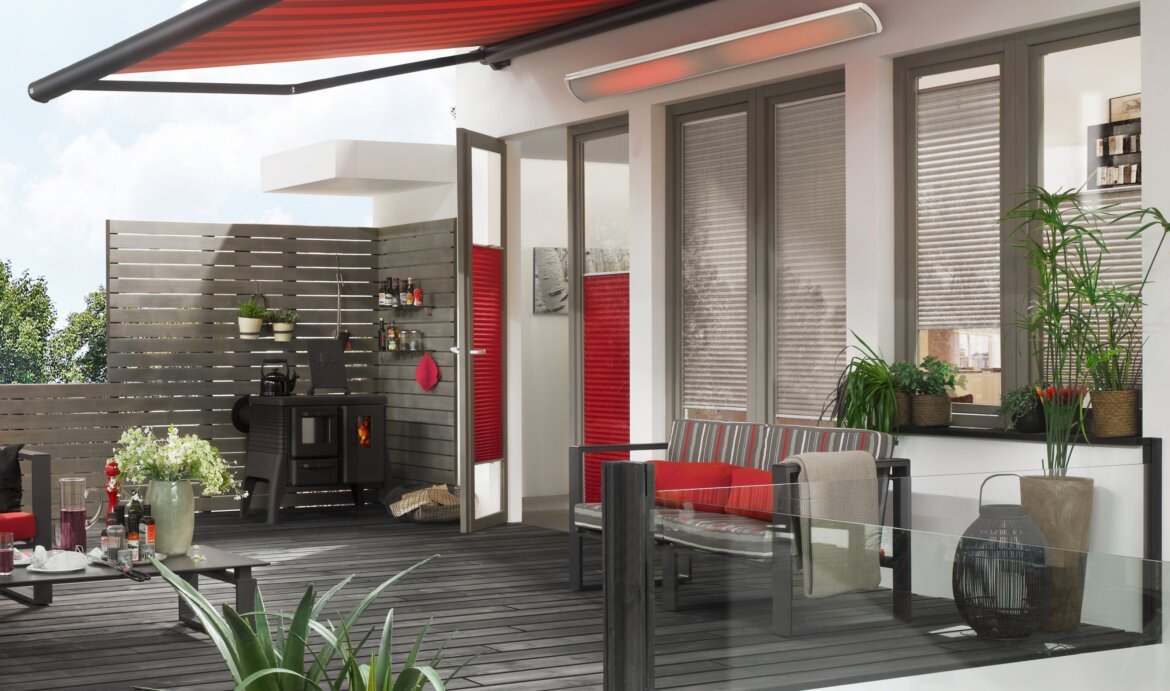

Vision 3200W Electric Radiant Heater

Subtle orange glow which is
only 30-40% of the light output

HEATSCOPE® Vision 3200W ambient heater emits medium-wave infrared light with its parallel carbon heating strands. Since the already low luminosity of less than 300 lux is still dimmed by the glass-ceramic front, a cozy atmosphere is created.

Product Configuration

Select Model Finish*

How to choose the right finish?

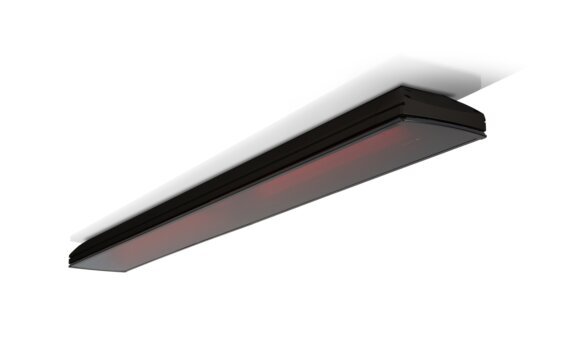

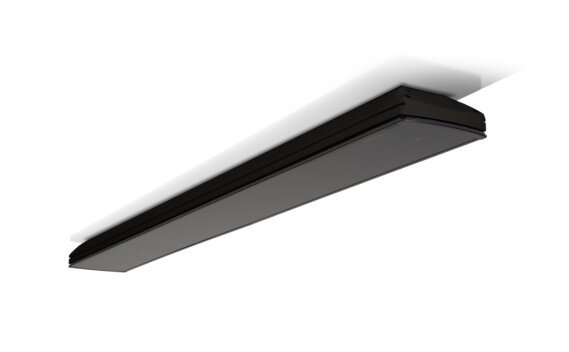

Black
Black  - Studio Image by Heatscope Heaters

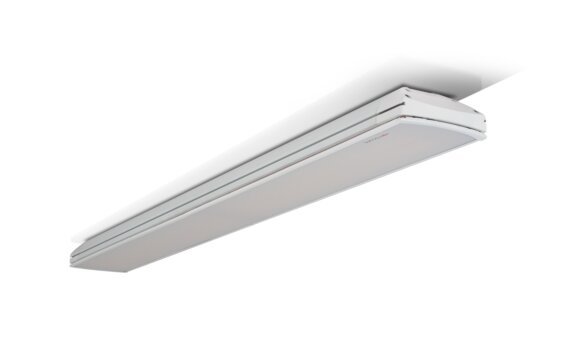

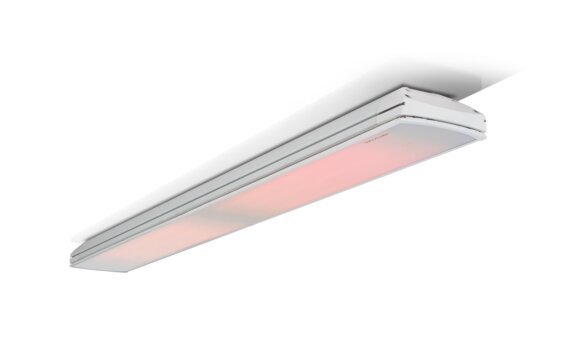

White
White  - Studio Image by Heatscope Heaters

Select Heater Control*

Which option is right for me?
Manual Mode  - Studio Image by Heatscope Heaters
Manual Mode The heater will be hardwired to your fuse box. To turn the appliance on and off you will need to install a dual isolation switch (not included).
IR Remote Control  - Studio Image by Heatscope Heaters
IR Remote Control Control HEATSCOPE® heaters with the infrared Remote Control. Switch on and off, and change power levels of your heaters.
Dual WiFi Smart Switch  - Studio Image by Heatscope Heaters
Dual WiFi Smart Switch It is installed inline between the fuse box and the HEATSCOPE® heater, and it allows the appliance to receive commands via a smartphone. Learn More
Dual Wi-FI Smart Switch supports Amazon Alexa and Google Assistant

Add Zigbee Accessories

How does the technology work?
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Bridge The heart of a smart home/space automation. Remotely manage a selection of up to 32 ZigBee devices and sensors.

Zigbee Add-Ons*

*Require the Zigbee Bridge
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Wireless Switch
ZigBee Bridge Accessorie - Studio Image by Heatscope Heaters
ZigBee Motion Sensor

Add Lift System

What is the Lift System?
Lift Accessorie - Studio Image by Heatscope Heaters
Lift

Lift Add-Ons*

*Require the Lift System
Lift Accessorie - Studio Image by Heatscope Heaters
Vision 3200 Lift Box
Lift Accessorie - Studio Image by Heatscope Heaters
Vision 3200 Lift Frame

Add Mounting Accessories

100mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
100mm Extension Rods Black
100mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
100mm Extension Rods White
300mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
300mm Extension Rods Black
300mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
300mm Extension Rods White
500mm Extension Rods Black Accessorie - Studio Image by Heatscope Heaters
500mm Extension Rods Black
500mm Extension Rods White Accessorie - Studio Image by Heatscope Heaters
500mm Extension Rods White

Add Weathershield

Weathershield 5 Black Accessorie - Studio Image by Heatscope Heaters
Weathershield 5 Black
Weathershield 5 White Accessorie - Studio Image by Heatscope Heaters
Weathershield 5 White

Included Accessories

  • Mounting Parts

Key Features

Efficiency made simple

HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.

Real infrared

All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.

Inviting & cosy

Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.

Super fast

Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.

Full control

The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).

Award-winning design

Delivers pleasant heat without the distraction. Clean-cut, modern designs and colours easily blend into any decor.

Weather-resistant

All models are certified with an IP rating for protection against dust, splash-water, and wind.

No aggressive red light

Produces a very ambient, modest light based on double carbon heating elements.

High efficiency

Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.

Smart switch

Operate and sync your heater(s) with your smart device (compatible with Alexa and Google Assistant). *Internet connection and additional accessories required

2-year warranty

Our radiant heaters come with an industry leading two-year limited warranty.

Technical Specifications

Installation Height
2.1-2.7 m
Power / Current
3200 W
/ 13.91 A
Voltage
220-240 V AC ~
50/60 Hz
Max. Power In
30-60 sec
Radiant Efficiency
90%
Visible Light
< 300 Lumen
*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).

Coverage Area

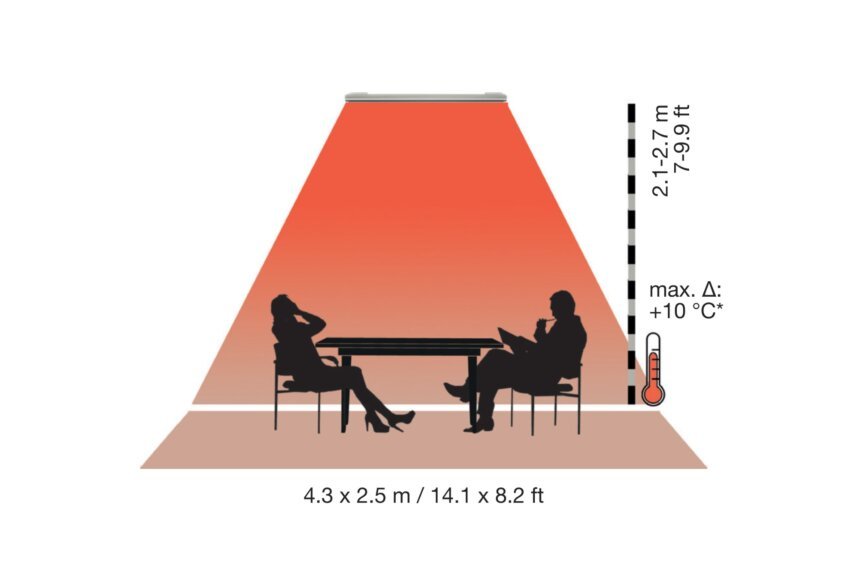

This graphic shows the heating performance of Heatscope Vision 3200W heaters. Please note that the heat output always depends on a wide range of factors.

They include: Installation environment (indoors or outdoors, enclosed or open, wind-protected or wind-prone), installation height, radiation angles, weather, voltage fluctuations, etc.

Please consider all these factors in your planning.

*All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height).

Construction

  • MPN (Black) MHS-VE3200AB.100
  • MPN (White) MHS-VE3200WT.100
  • Weight 10kg [22.05lb]
  • Model Dimensions mm [in] L 1660mm [65.4in] W 184mm [7.2in] H 87mm [3.4in]
  • Application Indoor & Outdoor
  • Materials Aluminum body, glass ceramic front
  • Colours

FAQ's

View All

Is a remote control included?

The remote control is optional for all models and it works via WiFi. Internet connection is required, plus the Dual Wifi Smart Switch and Zigbee Bridge (optional accessories).

Can all HEATSCOPE® heaters be mounted on the wall or ceiling?

Yes. All models are supplied with a bracket for wall or ceiling mounting.

How do I replace the carbon element fibres of my HEATSCOPE® heater?

Changing the carbon fibre elements of the HEATSCOPE® heater must not be done by yourself. You will need to engage a licensed electrician to perform the service.

How does the remote control work?

The remote control has 2 buttons so you can choose to turn on/off each carbon heating element individually for 50% or 100% heat. Alternatively, you can use your smartphone or tablet as remote control via the eWeLink app.

What heating accessories are available?

We have a range of optional accessories to help you achieve your project needs. The Dual WiFi Smart Switch allows you to connect the heater to a smartphone or tablet. The Zigbee Wireless Switch (Remote Control) and Zigbee Motion Sensor provide excellent range, and all these accessories will work anywhere in your home when WiFi is available. We also offer a weather shield to help protect your appliance from outdoor elements if they are not under cover. Please visit our website for more details on the available accessories.

What is infrared radiant heating technology?

It’s a natural and efficient form of heating where the appliance radiates electromagnetic waves uniformly like sunbeams, providing a pleasant and targeted warmth to the surfaces of objects and people within the space.

Can HEATSCOPE® heaters be mounted directly on a wooden structure?

HEATSCOPE® infrared heaters are supplied with optional mounting accessories such as extension rods. When used, it is safe to mount the appliance to the wood supporting structure as it provides the minimum clearance from combustible materials.

How many amperes does HEATSCOPE® radiant heaters draw?

  • Spot – 12.17 amps at 100% power
  • Vision – 13.91 amps at 100% power
  • Pure – 13.04 amps at 100% power
